Feature Overview
This feature allows you to set “threshold alert conditions” for numeric input fields on the KANNA Report template editing screen.
When a value that meets the configured alert condition is entered, a notification is sent and an alert icon is displayed in the cell and in the report list. This makes it easy to quickly identify values that fall outside the acceptable range.
How to Set Threshold Alerts

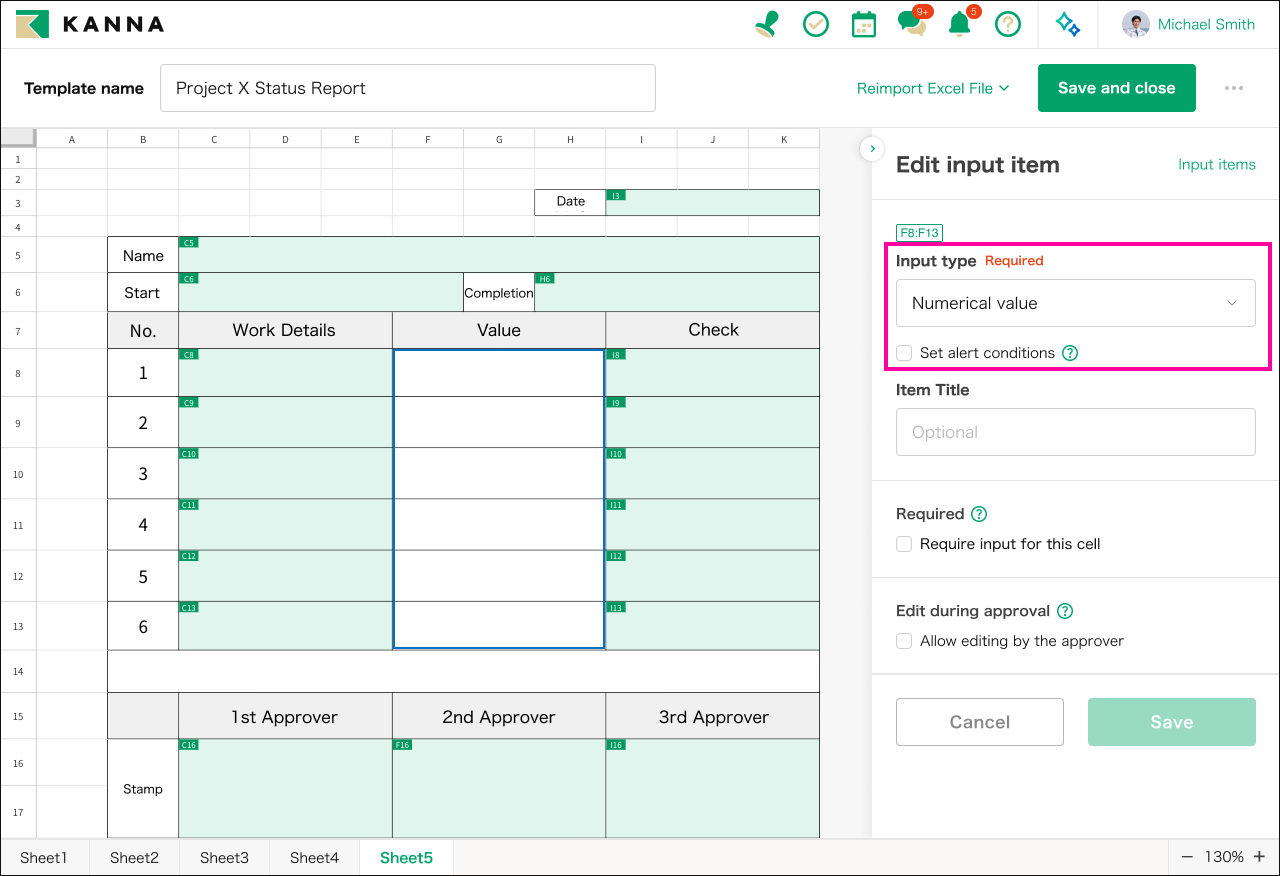

On the report template settings screen, select a numeric input field in the cell where you want to set a threshold.
Turn on the “Set alert conditions” checkbox in the input field settings panel.
Note: Threshold alerts can only be set for numeric input fields. They cannot be applied to other field types such as text or date.
How to Configure Alert Conditions

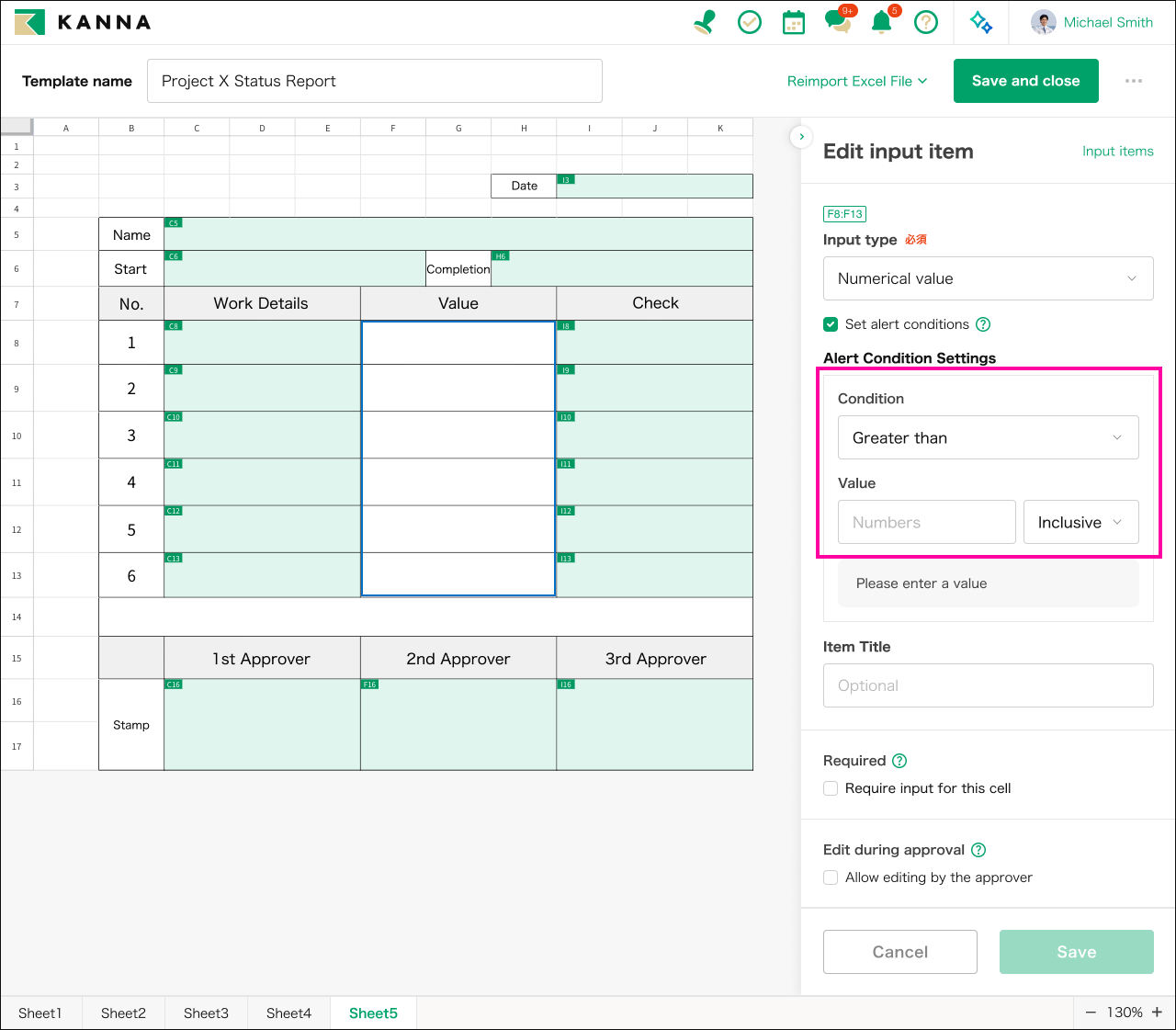

From the “Condition” dropdown, select one of the following condition types:
Condition
Greater than: Triggers an alert when the value exceeds the specified number
Less than: Triggers an alert when the value falls below the specified number
Between the following values: Triggers an alert when the value falls within the specified range
Outside the following values: Triggers an alert when the value falls outside the specified range
Value
Enter the reference number.
Inclusive / Exclusive
Select whether to include the entered value itself in the alert condition.
About Alert Display

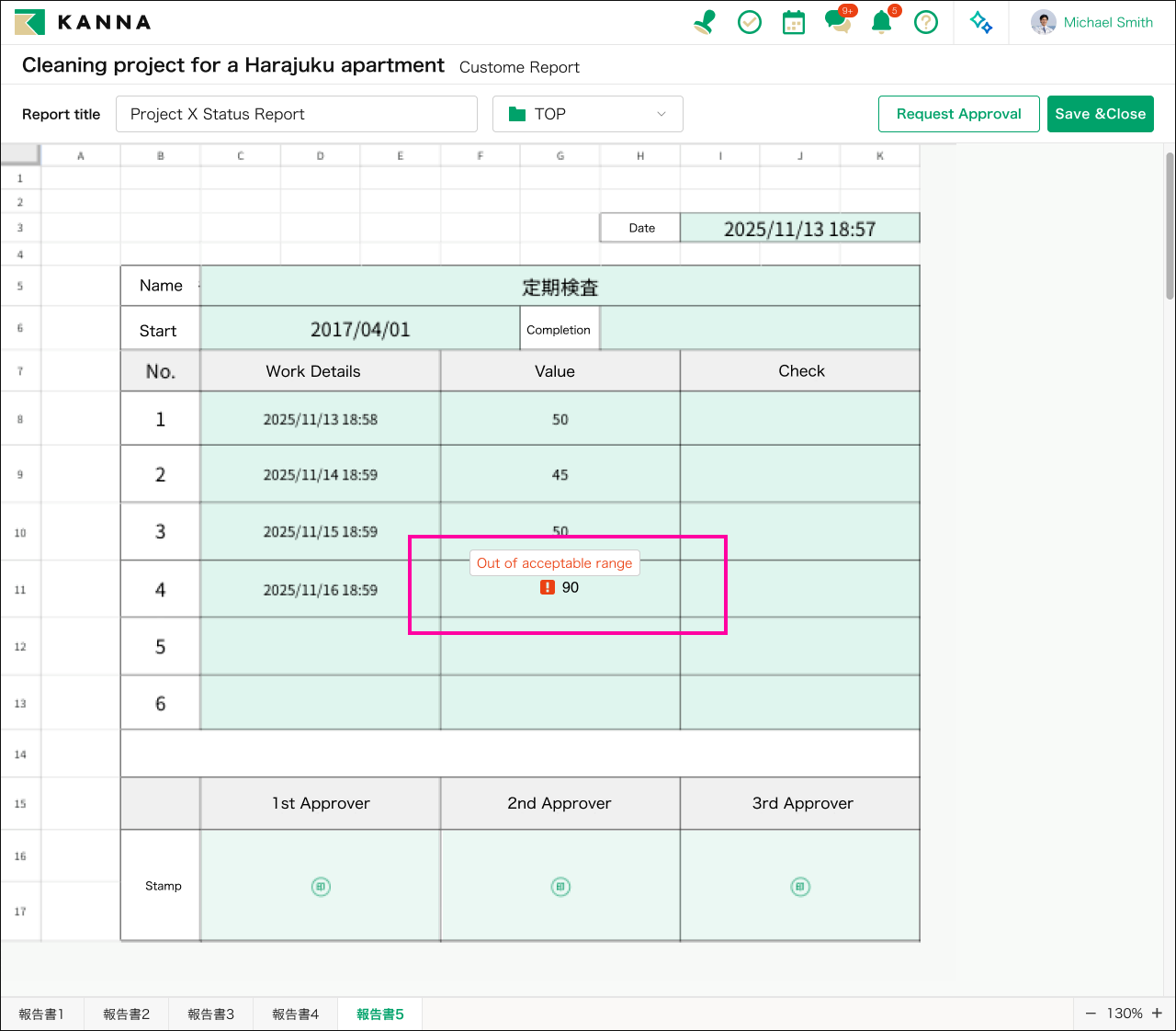

When a value that meets the alert condition is entered into a cell with a threshold alert set, a “!” icon appears next to the value.
Hovering over the icon displays a tooltip saying “Out of acceptable range”
At the same time, a notification is sent to the project manager.
About Notification Settings

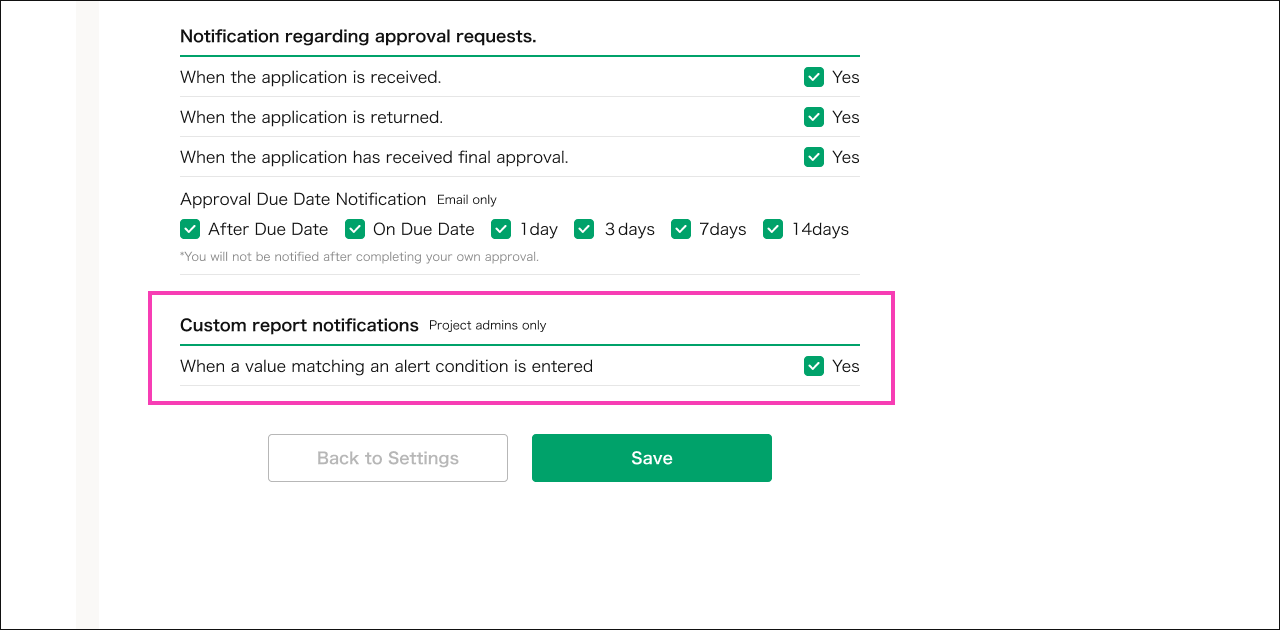

Notifications can be turned ON/OFF in “Notification Settings.”
(Notifications are sent only to project managers.)
